Automatic paint color mixing machine ,gyro colorant paint mixers
Brief Introduction
The automatic gyroscopic mixer YJ-2A-02 designed by YIJIU Co., It works on the theory that the table revolve around the shaft meanwhile rotate on their axes with the character of high-efficiency , high-speed .It is suitble to different chemical liquids : paint colorant , coating , ink , glue , etc. Fit for big package and high viscosity chemical liquids mixing .
Application:
Chemical liquids : paint colorant , coating , ink , glue , etc.
Features
1. Adjustable:
a. rotating speed is adjustable (80 r/min--150 r/min) to meet the needs of different mixing materials. The data of inverter is automatically set, leaving you no trouble when replace inverter.
b. Clamping strength is adjustable, which meets the needs of different size canisters, and also ensure the stability and no deformation force.
3. Convinient: The lower plate can be pull out. easy to put the mixing can on or off.
4. Thoroughly mixing: rotation and revolution go simultaneously during mixing, which solves the problem of uneven and long time mixing caused by single direction rotation.
Technical Data
| Time of Mixing | 15 seconds~9 mins 45 seconds |
| Size of Mixing can | 1~20L |
| Load of Mixing can | 1~35KG |
| Speed of Mixing can | Adjustable (80 r/min--150 r/min) |
| Suitable can height | 80~400mm |
| Suitable can diameter | 320mm |
| Machine Size | 800(l)*745(w)*1010(h)mm |

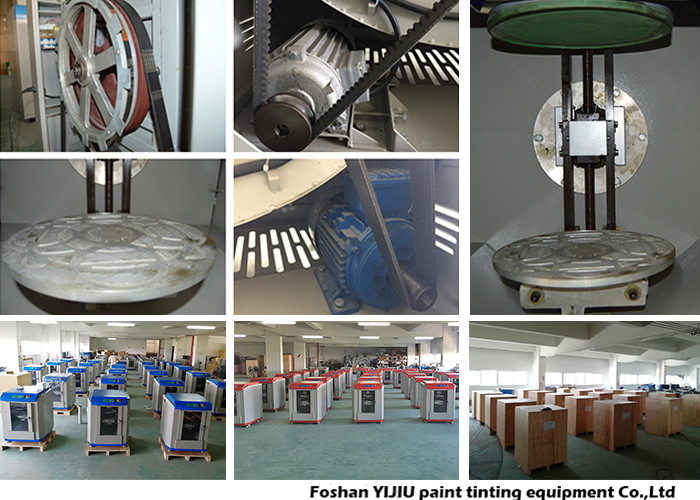

Sample Show
1. The clamping motor and the rotating motor are with high quality.
2. The belt is durable which imported from Japan, it's automotive belt.
3. The lower plate fit for different size of pails, also can mix 1-4 small pails in the same time.
Mixer machine FAQ
1. What's the max mixing ability?
20L, 35 kg, 5 US gallon
2. Can it be used for other liquid except paint?
yes, any liquid chemicals
3. Which types of drums can be used for mixer?
Round or Square both OK, but the upper and bottom should be flat.
4. Can it adjust time and speed?
yes,
Time: 15S , 30S , 45S...9mins 45s
Speed: two levels, low speed for big cans and high speed for small cans.
5. What's your after sales service provided?
one year warranty and free spare parts provided
6. What's the packing size for shipping cost?
| Net Weight/ Gross Weight | 182KG / 214LG |
| Machine Size | 800(l)*745(w)*1010(h)mm |
| Packing Size | 780(l)*850(w)*1130(h)mm |
Our Service
Warranty Service: Warranty period is 12 months. Within guarantee period,we can help you judge the fault according to the failure phenomenon by E-mail. and send replacement part to you except for the man-made factors.
Training:You can send personnel to our factory for free training on the machine.
Inspection: You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
Testing of equipments: all our machines are tested before shipment. All machines are at its optimal state when shipped.
