Manual clamping gyro paint mixing machine , paint colorant mixer
Brief Introduction
Working theory: the table revolve around the shaft meanwhile rotate on their axes with the character of high-efficiency , high-speed . It is fit for big package and high viscosity chemical liquids mixing .
Application:
Chemical liquids : paint colorant , coating , ink , glue , etc.
Feature
Stable, even and fast stirring. Manual clamping and loosening the mixing can, easy to operate and maintain. Lower clamping plate is movable, which ensures the easy "on and off" of the mixing can.Rotation and revolution go simultaneously, 2 directions rotation,counterclockwise rotate then Clockwise rotate,mix more evenly. Electrode tube indicator,more convenient and clear
Technical Data
| Time of Mixing | 15s-9min45s |
| Size of Mixing can | 1~20 L |
| Load of Mixing can | 1~35 KG |
| Speed of Mixing | 80r/min~ 150 r/min |
| Height of Mixing can | 80~380 mm |
| Power Supply | 110/220V±10%, 50HZ |
| Rated Power | 750W |
| Net Weight | 180KG |
| Machine Size | 780(l)*800(w)*1015(h)mm |

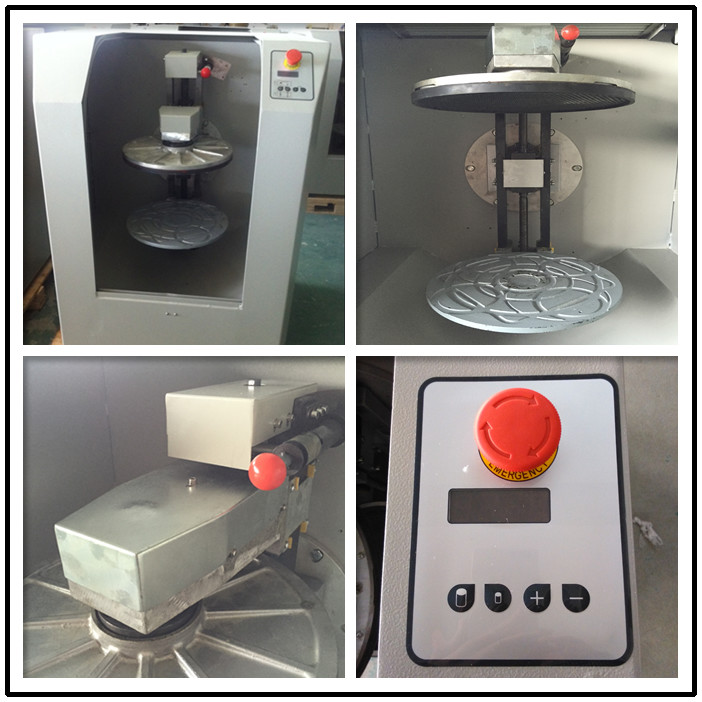

Sample show
1. Clamping strength is adjustable manually
2. Fast and thorough mixing by two directions rotating.
3. LED control pannel is easy to operate.
Mixer machine FAQ
1. What's the max mixing ability?
20L, 35 kg, 5 US gallon
2. Can it be used for other liquid except paint?
Yes, any liquid chemicals
3. Which types of drums can be used for mixer?
Round or Square both OK, but the upper and bottom should be flat.
4.Can it adjust time and speed?
Yes!
Time: 15 seconds-9 mins 45 second
Speed: two levels, low speed for big cans and high speed for small cans.
5. What's your after sales service provided?
One year warranty and free spare parts provided
6. What's the packing size for shipping cost?
| Gross weight | 240KG |
| Packing Size | 810(l)*830(w)*1150(h)mm |
